Application
This machine is specifically designed for testing the tensile strength of electrical insulators,which is fully automated and easy to operate.

Main Functions And Configuration:

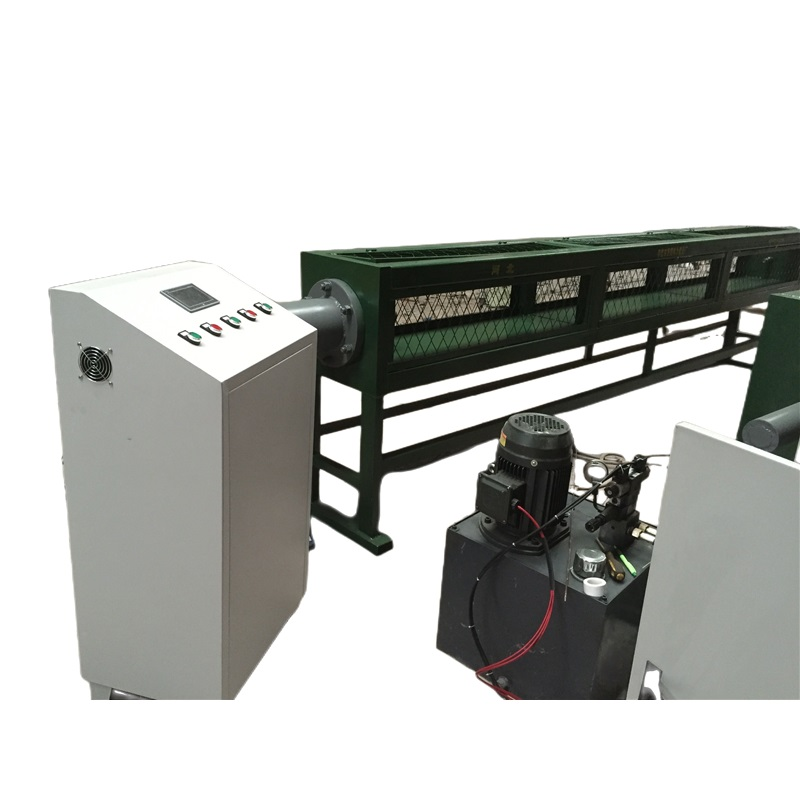

●11 kW servo motor
●13 liters gear pump
●10 inch touch screen
●with a micro printer
●set tension and bending two control systems, the conventional state is used to detect tension, need to detect bending strength need to install supporting devices
● the main frame with 300 H steel, the inner space of 8.5 meters
●speed and tension can be adjusted at uniform speed, automatic speed change in the case of tension, pressure holding time, tension, speed range can be set on the touch screen
Measurement
●5m(L) x 0.5m(W) x 1.2m(H);
●8.5m(L) x 0.8m(W) x 1.2m(H);

Packaging
Packed in wooden case

NOTES:
The size of the horizontal tensile testing machine can be customized.

Electrical Schematic Diagram:

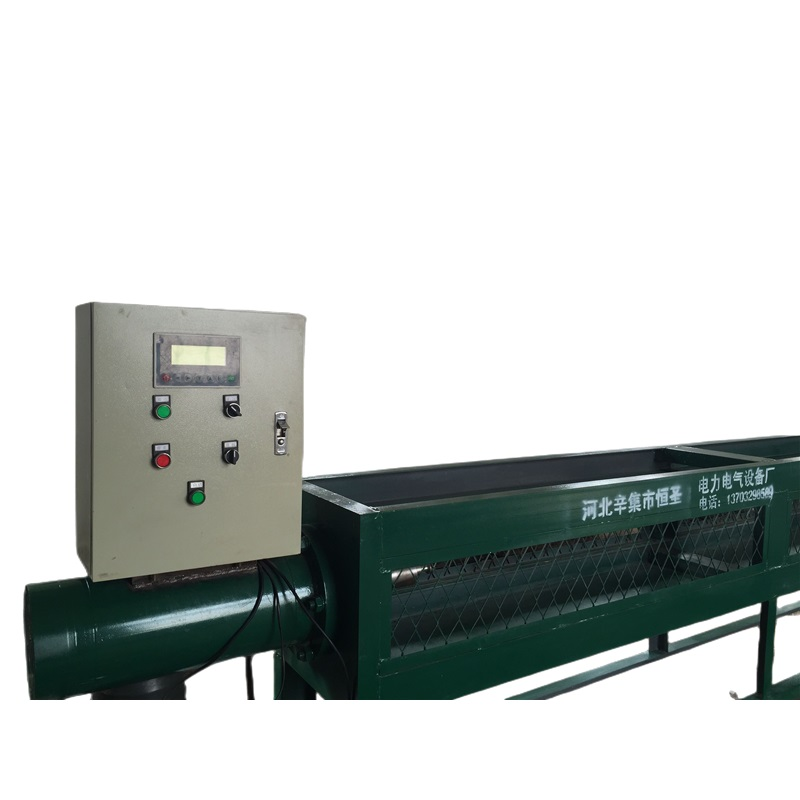

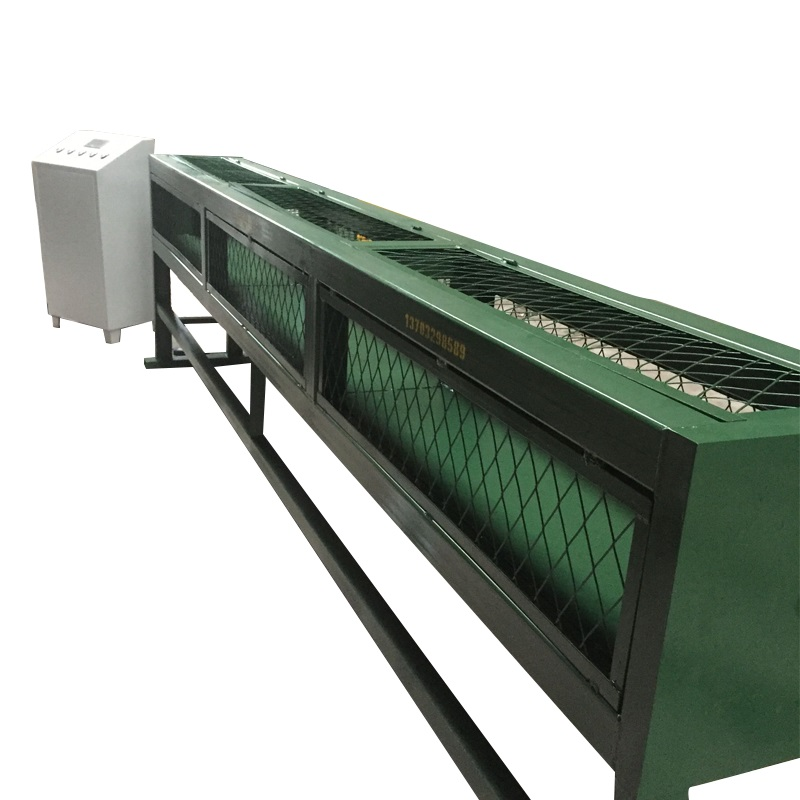

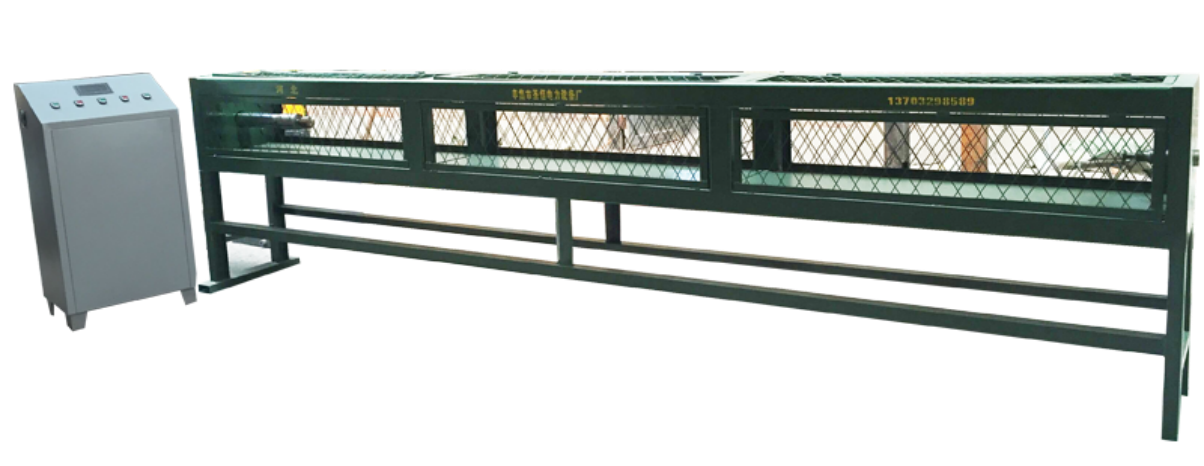

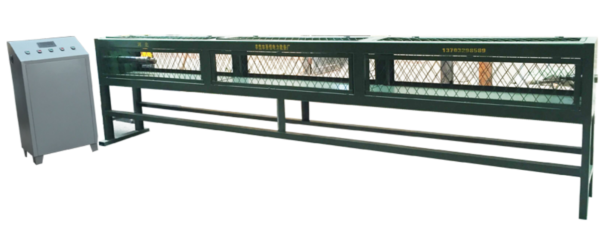

    This tensile testing machine is a horizontal structure, can test the tensile force in the range of 0 to 200kN, the length of the specimen below 4000mm, there are two kinds of force measurement methods: tensile force sensing measurement and pressure sensing measurement. The product structure is simple, intuitive and durable, easy to operate, high degree of automation, to a certain extent, can achieve one-button testing. Support customization.

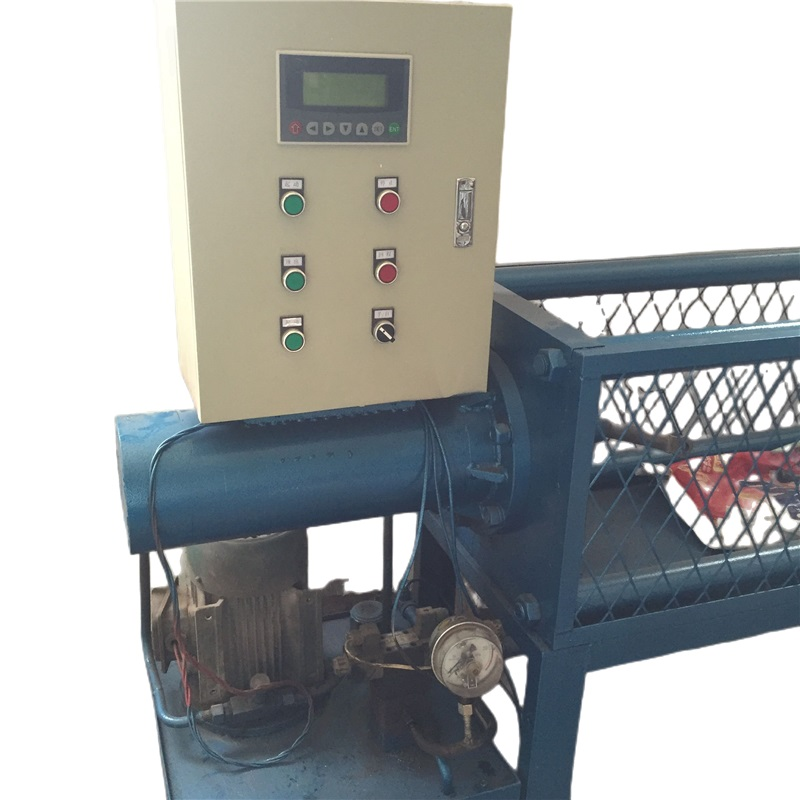

Press the motor start button, the motor starts, at this time the indicator light is on, the rotary knob is in the stop state, at this time the oil pump idles, when the rotary knob is in the loosening or tightening, the machine is in the working state, press the motor stop button, the motor is disconnected, terminating the work. It is recommended to use 27-33CST hydraulic oil for the first time, replace it once in three months, and then once every six months. When the system is used for the first time, first turn the relief valve to the loosest, and then tighten it gradually against the value shown in the pressure gauge to reach the required pulling force.
